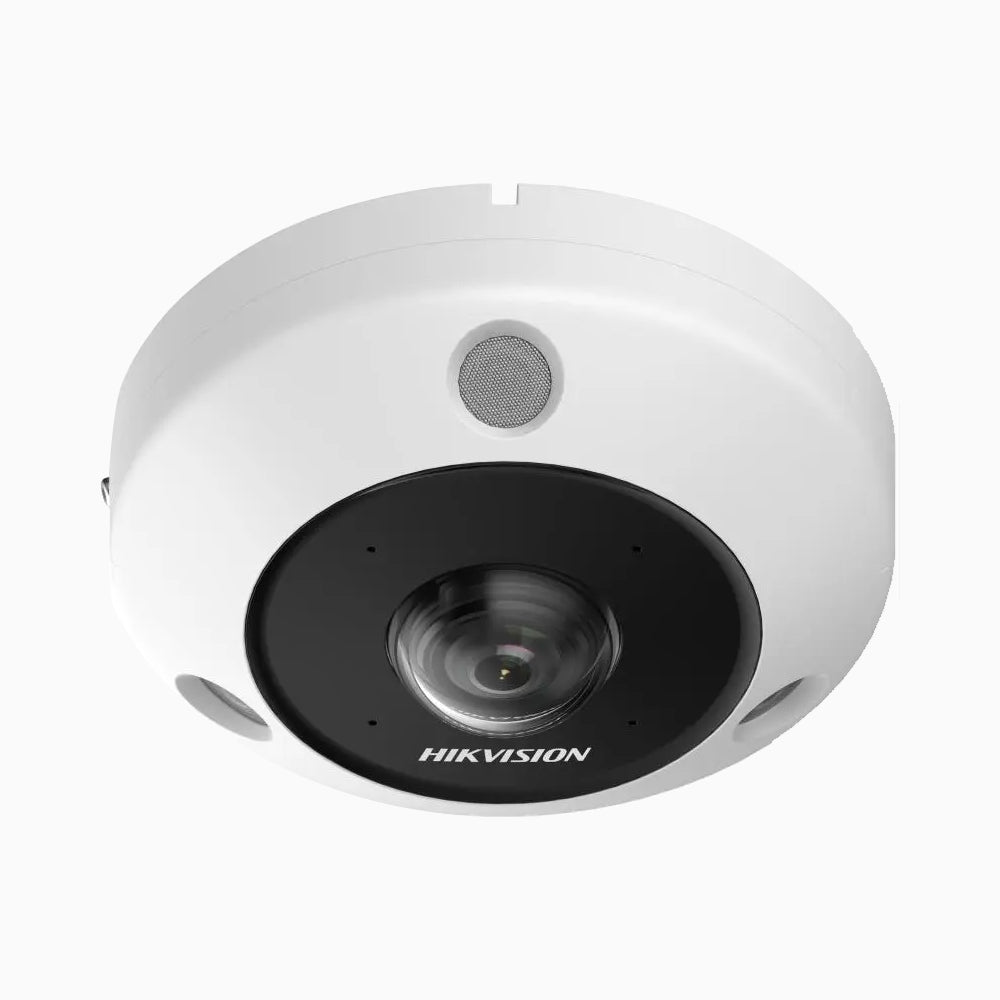

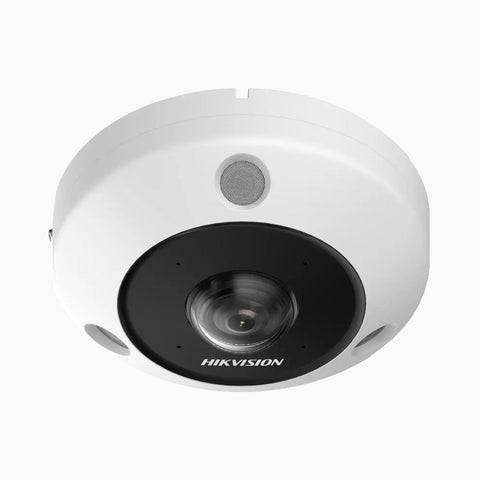

12MP 360° Fisheye PoE Security Camera, 3504 × 3504 @ 30 fps, IR Night Vision, Two-way Audio, IP67 & IK10
SKU:
DS-2CD63C5G1-IVS
- €799,99
- €799,99
-
- Precio unitario
- por
Envío rápido y gratuito
Garantía de devolución de 30 días
Atención al cliente de por vida y garantía sin complicaciones
360° fisheye lens: providing a 360-degree panoramic image of the surveillance scene.
High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode.
Heatmap: Based on deep learning algorithms, the camera counts people and presents an intuitive map.
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively.
Built-in microphone and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments.
Water and dust resistant (IP67) and vandal resistant (IK10).
Panomorph lens RPL: 89VVT
Specification
Download DS-2CD63C5G1-IVS Specification
| Camera | Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3504 × 3504 | |
| Min. Illumination | Colour: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.006 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR | |
| Shutter Time | 1 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Lens | Lens Type | Fixed focal lens, 1.29 mm |
| Focal Length & FOV | 1.29 mm, horizontal FOV 180°, vertical FOV 180° | |
| Iris Type | Fixed | |
| Aperture | F2.2 | |
| Depth Of Field | 0.2 m to ∞ | |
| DORI | DORI | D: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m |
| Illuminator | Supplement Light Type | IR |
| Supplement Light Range | Up to 15 m | |
| Supplement Light Number | 3 | |
| IR Wavelength | 850 nm | |
| Smart Supplement Light | Yes | |
| HEOP | Open Resources | Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB |
| Computing Power | 2 TOPS | |
| Open Capability | Open Capability | |
| Deep Learning Structure | Caffe, TensorFlow, PyTorch | |
| Programming Language | C,C++ | |
| Video | Main Stream | 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536 |
| Sub-Stream | 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240 |
|
| Video Compression | Mainstream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG |
|
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| H.264 Type | Baseline Profile, Main Profile, High Profile | |
| H.265 Type | Main Profile | |
| Bit Rate Control | CBR,VBR | |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
| Region Of Interest (ROI) | 4 fixed regions for each stream | |
| Fisheye Display | Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding | |
| Display Mode | 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
|
| Audio | Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) | |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz | |
| Environment Noise Filtering | Yes | |
| Network | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels | |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI, SDK, ISUP | |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
|
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) | |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with a high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
| Client | iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect | |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
| Image | Image Parameters Switch | Yes |
| Image Settings | saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser | |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| Image Enhancement | BLC,HLC,3D DNR, Distortion Correction, Defog | |
| Privacy Mask | 8 programmable polygon privacy masks | |
| Interface | Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, supports microSD/micro SDHC/micro SDXC card, up to 256 GB | |
| Built-In Microphone | Yes, 4 built-in microphones | |
| Built-In Speaker | Yes, 1 built-in speaker | |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) | |
| Event | Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection | |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture | |
| Deep Learning Function | People Counting | Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method |
| Queue Management | Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
|
| Heat Map | A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. |
|
| Intersection Analysis | Detects and analyzes flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways |
|
| General | Power | 12 VDC ± 20%, 1 A, max. 11.5 W, two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Material | Metal | |
| Dimension | Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") | |
| Package Dimension | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") | |
| Weight | Approx. 715 g (1.58 lb.) | |
| General Function | Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding |
